TDL-6110X PIR
Everyday wardrobe and cabinet lighting; five lengths.
US$4.91–13.05 a unit at 100–500 units (12, 23 or 60 cm)
Ask about TDL-6110XRechargeable Motion Sensor Cabinet Lights from China — PIR, radar & hand-wave
Rechargeable light bars for kitchen cabinets, wardrobes and displays from TUODI, whose current production base is in Zhaoqing, China. The Sensor Cabinet Light Series (TDL-6110) comes in PIR, microwave radar, hand-wave/touch and remote-control versions; the Detachable-Battery Sensor Light (TDL-6111) adds a removable battery card. TDL-6110X starts at US$4.91 a unit at 100–500 units (indicative wholesale, 12, 23 or 60 cm).
The cabinet-light range
TDL-6110XWB radar
Microwave radar sensing, generally less affected by room temperature than PIR.
US$7.94–13.57 a unit at 100–500 units
Ask about TDL-6110XWB
TDL-6110X-IR hand-wave
Hand-wave and touch control for displays and work surfaces.
US$4.91–13.05 a unit at 100–500 units (12, 23, 40 or 60 cm)
Ask about TDL-6110X-IR
TDL-6111 detachable battery
Charge the battery card and leave the light bar installed.
Ask about TDL-6111
TDL-6108A big battery
A compact 380 mm unit with a quoted 4000 mAh battery.
US$9.14 a unit, minimum 1,000 units
Ask about TDL-6108A
TDL-7127 safe light
Twin-head battery PIR light for safes, strongboxes and deep wardrobes.
US$4.66 a white-shell unit, minimum 1,000 units
Ask about TDL-7127
TDL-7134 picture light
Battery spotlight for artwork and display walls, with a dimming remote.
US$8.87 a unit at 100–500 units
Ask about TDL-7134Every light above runs on its own battery. For a permanent supply, the factory also builds the Supply-Powered Cabinet Light Bar (TDL-7148), with 5 V or 24 V builds published; see it in the Product Finder. For a furniture programme, use the wardrobe and closet planning guide.
Get a cabinet-light quote on WhatsApp Build a cabinet-light enquiry
Full specifications by model

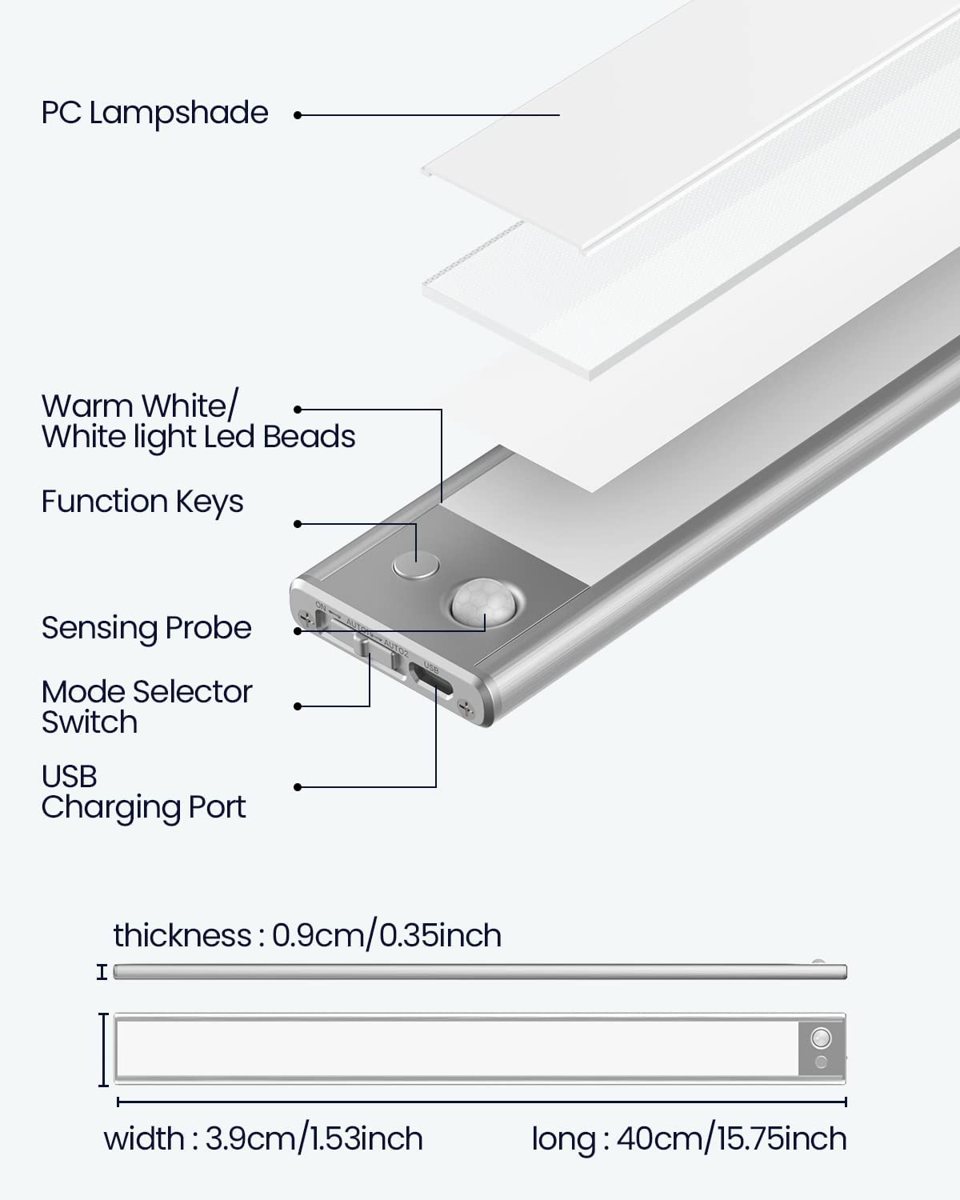

TDL-6110X — Rechargeable PIR Cabinet Light
TDL-6110X model page: lengths, factory figures and buyer summary →

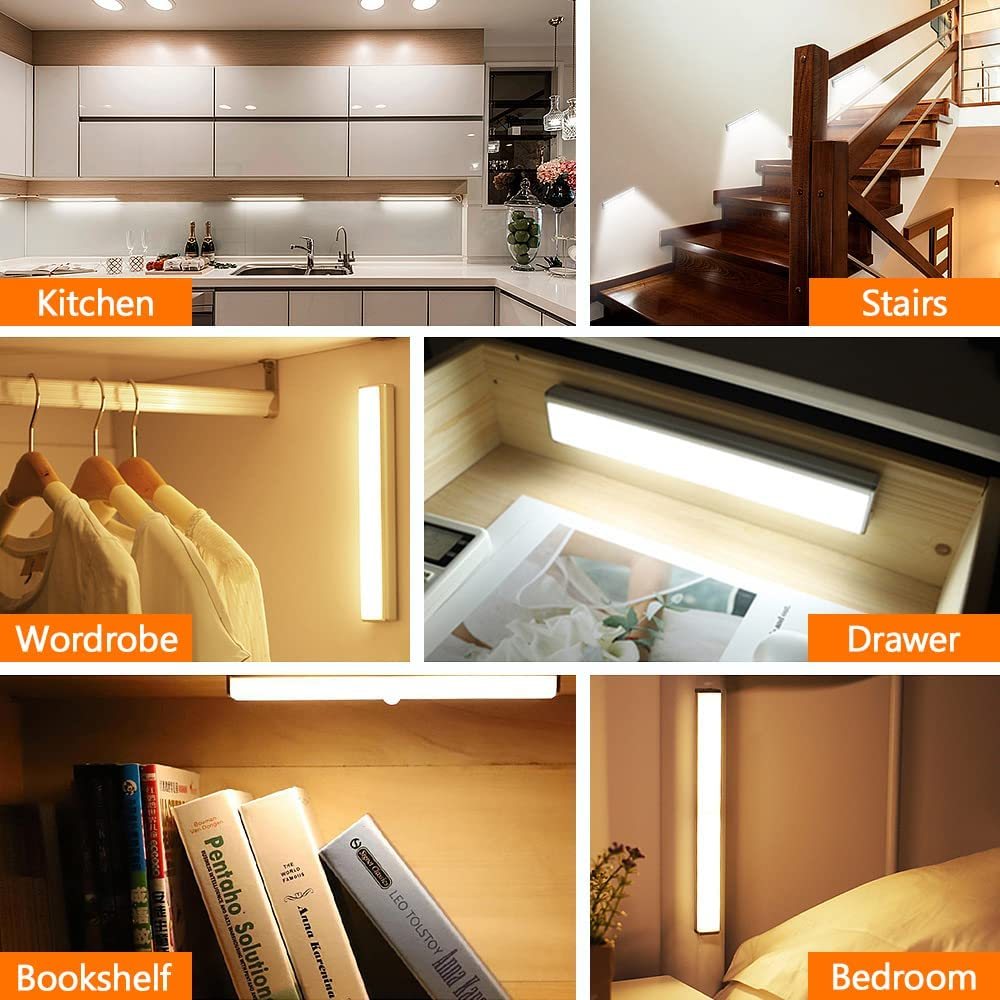

A rechargeable PIR bar for cabinets, wardrobes, bedside areas, storage spaces, desks, corridors and stairs. Painted magnets on the back and a 3M-pad option support tool-free mounting on a suitable surface.
- PIR motion detection, 120° angle, >3 m on the 30 / 40 cm models
- Battery sized to the length — 300 to 4400 mAh across the five lengths (see the table below)
- LED count scales with length (102 on the 30 cm bar)
- Selectable 2800 / 4000 / 6000 K on the 30 / 40 cm models; brightness adjustable
- USB-C charging; magnet + 3M installation
Five factory lengths, plus custom lengths. A length outside the table is quoted as a custom build, cut on the factory's own cutting equipment from an existing aluminium profile, as a tooling job with its own minimum order. A 50 cm bar, for example, comes from the 60 cm profile and is offered at 250 or 300 lm with a 3000 or 4500 mAh pack, with planning figures of 5–7 days for the sample and 25–30 days for production. Ask for those same three answers on the length you need.
| 12 cm | 118 × 38 × 9 mm · 300 mAh · 90 g · carton 200 pcs |
|---|---|
| 23 cm | 231 × 38 × 9 mm · 1500 mAh · 150 g · carton 100 pcs |
| 30 cm new · quoted per order | 300 × 38 × 9 mm · 2200 mAh · 0.6–3 W ±10% · 50–180 lm ±10% · 102 LEDs · 171 g · 18 s hold · carton 60 pcs, 335 × 335 × 290 mm, 15 / 14.5 kg gross / net |
| 40 cm · quoted per order | 403 × 38 × 9 mm · 3000 mAh · 3 W · 220 lm · 140 LEDs · 210 g · 18 s hold · carton 48 pcs, 425 × 270 × 300 mm, 14.5 / 14 kg gross / net |
| 60 cm | 598 × 38 × 9 mm · 4400 mAh · 320 g · carton 40 pcs |
Private-label sample starting points: Enquire about 30 cm · Enquire about 40 cm
Need another length or a custom build? Ask about the TDL-6110 family.
30 and 40 cm: the private-label fit. Silver aluminium housing, rechargeable lithium battery, USB-C, PIR with night-only and all-day modes, magnetic mounting with two adhesive steel plates, three colour temperatures and a charging indicator. The two adhesive steel plates measure 3.5 × 4 cm, and the quoted bar magnets are single-sided N40 grade with a recommended maximum load of 300 g. The quoted CRI is ≥80. Stock samples, logo application and a custom retail box are available. Price, customisation minimums and lead time come with the quotation. Published prices include delivery within China; another basis such as FOB can be quoted on request.
The factory specifies 5–6 hours to charge and 20 hours of runtime at minimum brightness, and offers a one-year warranty; the DOA definition, return freight and remedy go on your proforma invoice.
The factory specifies 5–6 hours to charge and 20 hours of runtime at minimum brightness, and offers a one-year warranty; the DOA definition, return freight and remedy go on your proforma invoice.
Variants on the same platform: TDL-6110XD / 6110XS / 6110X-C housings, hand-sweep (IR) versions in four lengths: 12, 23, 40 and 60 cm (their own battery set: 300 / 900 / 1500 / 2200 mAh), TDL-6110H with daylight inhibit, TDL-6110X-RF with RF remote, and TDL-6110X-TD touch-control (38 cm 3000 mAh / 58 cm 4500 mAh, 4 h charge → 8 h runtime).
Indicative wholesale for TDL-6110X PIR (12, 23 or 60 cm) and TDL-6110X-IR hand-sweep (12, 23, 40 or 60 cm) only: US$4.91–13.05 / unit · 100–500 units. PIR 30 / 40 cm builds, other housings, custom lengths, TDL-6110H, TDL-6110X-RF and TDL-6110X-TD are quoted separately and excluded from this range. TDL-6110X-TD 38 / 58 cm requires a minimum of 1,000 units.

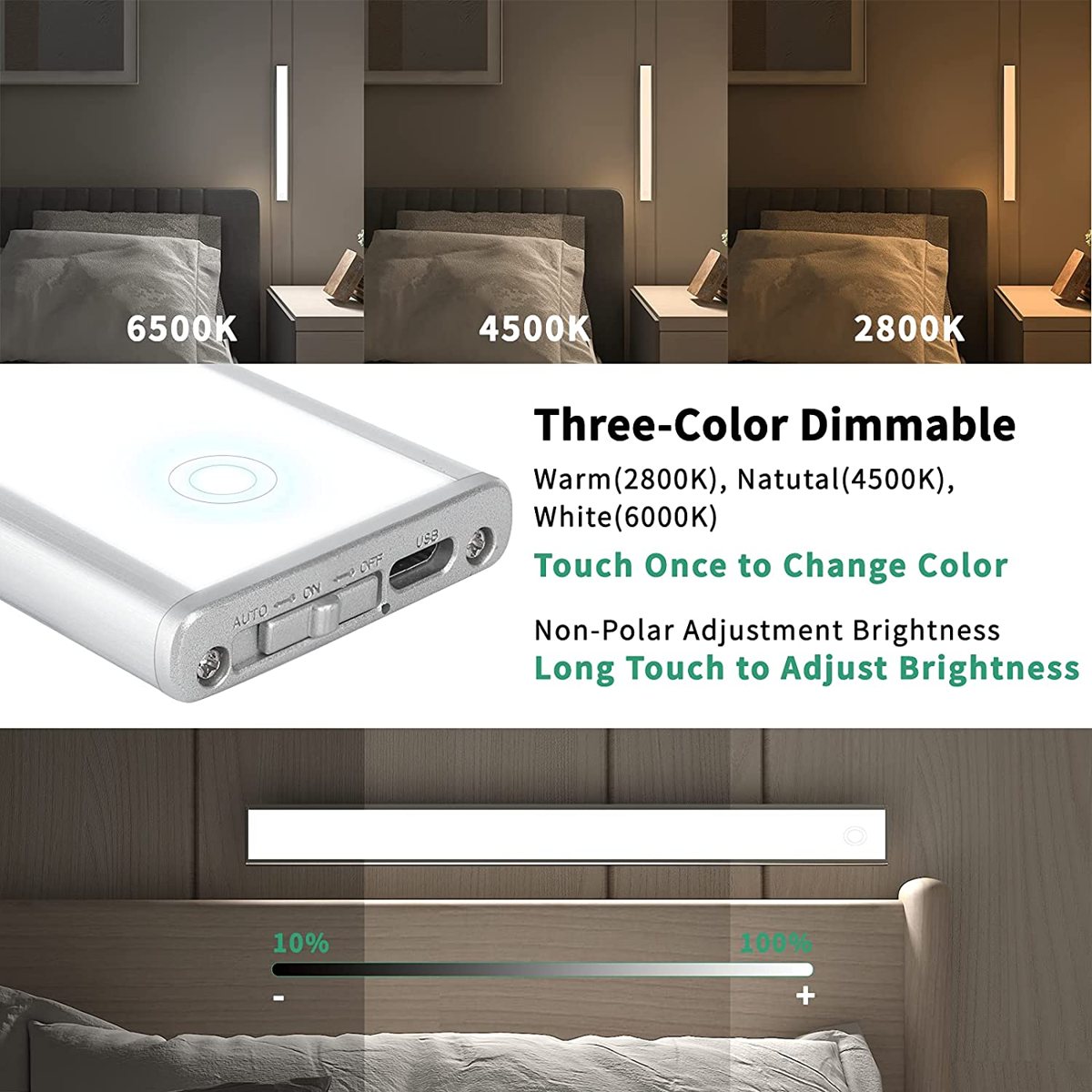

Ask about the TDL-6110 familyTDL-6110XWB — Microwave Radar Sensor Light
Same form factor with microwave radar instead of PIR. Radar is generally less affected by room temperature than PIR and can sense through some thin panels; tell us the panel material and sensor position in your cabinet. Three lengths (2026 factory quotation sheet):
| 24 cm | 1 W · 74 lm · 88 LEDs · 1500 mAh |
|---|---|
| 38 cm | 2.3 W · 205 lm · 140 LEDs · 3000 mAh |
| 58 cm | 2.9 W · 225 lm · 218 LEDs · 4500 mAh |
- Radar detection <3 m, 150° beam; 15 s hold; 10 lux daylight threshold
- Colour temperature 2800–5500 K (quotation sheet); 3.7 V platform
- Runtime with its test basis: 20 h continuous at minimum brightness — about 2 months at up to 15 activations a day (2026 factory listing basis)
Indicative wholesale: US$7.94–13.57 / unit · 100–500 units
Ask about TDL-6110XWBTDL-6110X-IR — Hand-Wave & Touch Control
TDL-6110X-IR model page: controls, lengths and buyer summary →
For displays and work surfaces where motion sensing would false-trigger: wave a hand to switch, touch to cycle colour, long-press to dim. Settings are retained by a memory function.
- Hand-wave IR sensor + touch sensor; AUTO (90 s) and ON modes
- Three colour temperatures — cool, neutral, warm white — with brightness memory
- Battery sized to the length — 300 to 2200 mAh across the hand-sweep lengths; USB charging
- Magnetic quick-mount, no screws or brackets
Illustration of the removable-card design. Confirm the battery capacity for the selected build on the quotation.

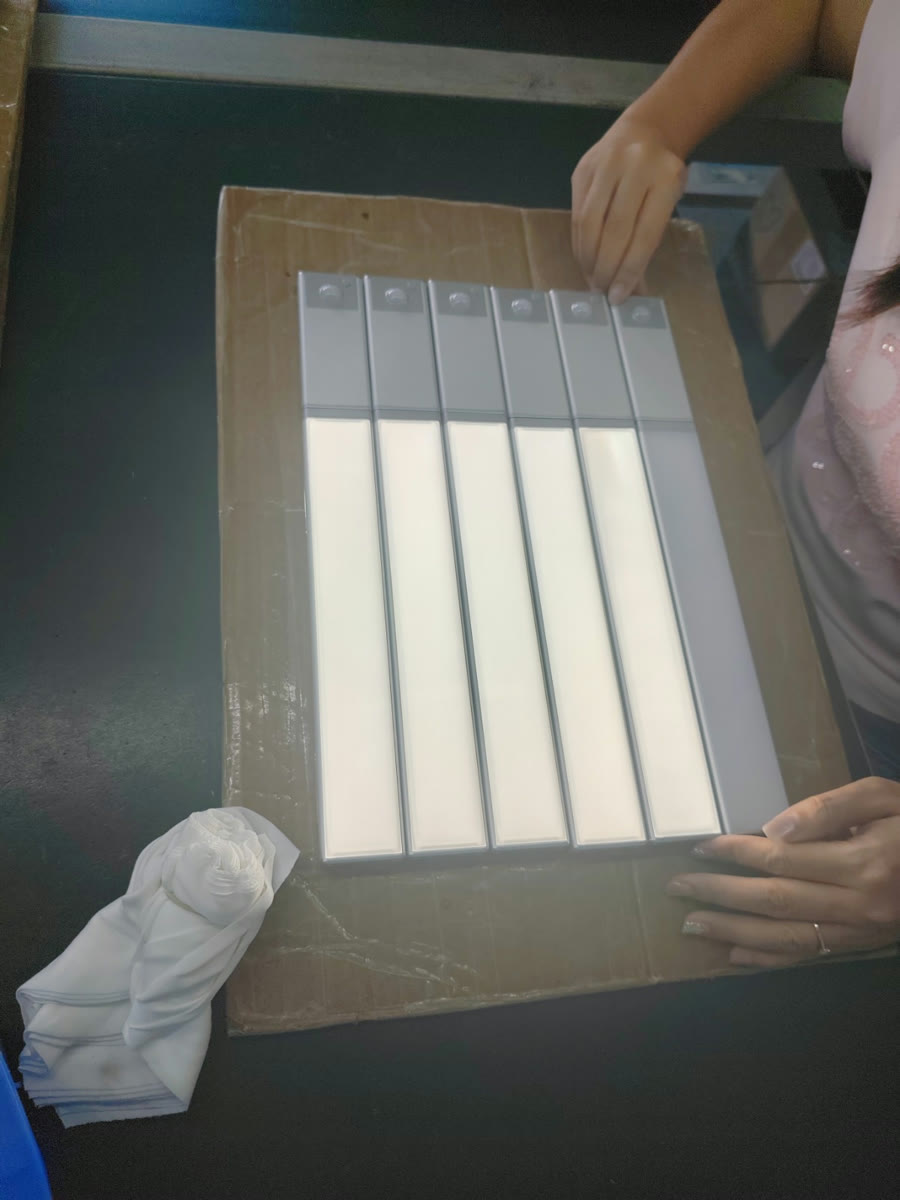

TDL-6111 — Detachable-Battery Sensor Light
TDL-6111 model page: configured spans, packing and buyer summary →
For cabinets, wardrobes, bedside areas and storage spaces where charging access matters, charge the detachable battery card while the installed light bar stays in place.
Two configured spans, with their published factory specifications:
35 cm configured span
25 cm light section + 10 cm battery card
- Power
- 1.3 W
- Power tolerance
- ±10%
- Light output
- 136 lm
Configuration reference: tdl-6111-35cm@3.
Enquire about 35 cm configured span
54 cm configured span
40 cm light section + 14 cm battery card
- Battery capacity
- 3000 mAh
- Power
- 2 W
- Power tolerance
- ±10%
- Light output
- 208 lm
- LED count
- 146 LEDs
- Hold time
- 15 s
Configuration reference: tdl-6111-54cm@3.
Enquire about 54 cm configured span
EMC lab attestation DLE-260814001C
EMC Directive 2014/30/EU; issued 17 August 2026.
Named subjects: TDL-6110X, 6110X-IR, 6110XRF-DJ, 6110XWB, 6111, 6112, 6113, 6118, 6108.
Family named; selected build still needs matching.
This EMC document is listed for the named model families; ask for the full document to check the length and battery build in your quotation.
Coverage of either selected TDL-6111 configuration still needs matching to the full document.
Do not use this EMC document to confirm battery capacity, runtime, water resistance, electrical safety or battery transport acceptance.
Request the full document and underlying test reports.
Ask whether the document covers the exact build in your quotation.
Request only: Full document and underlying test reports.

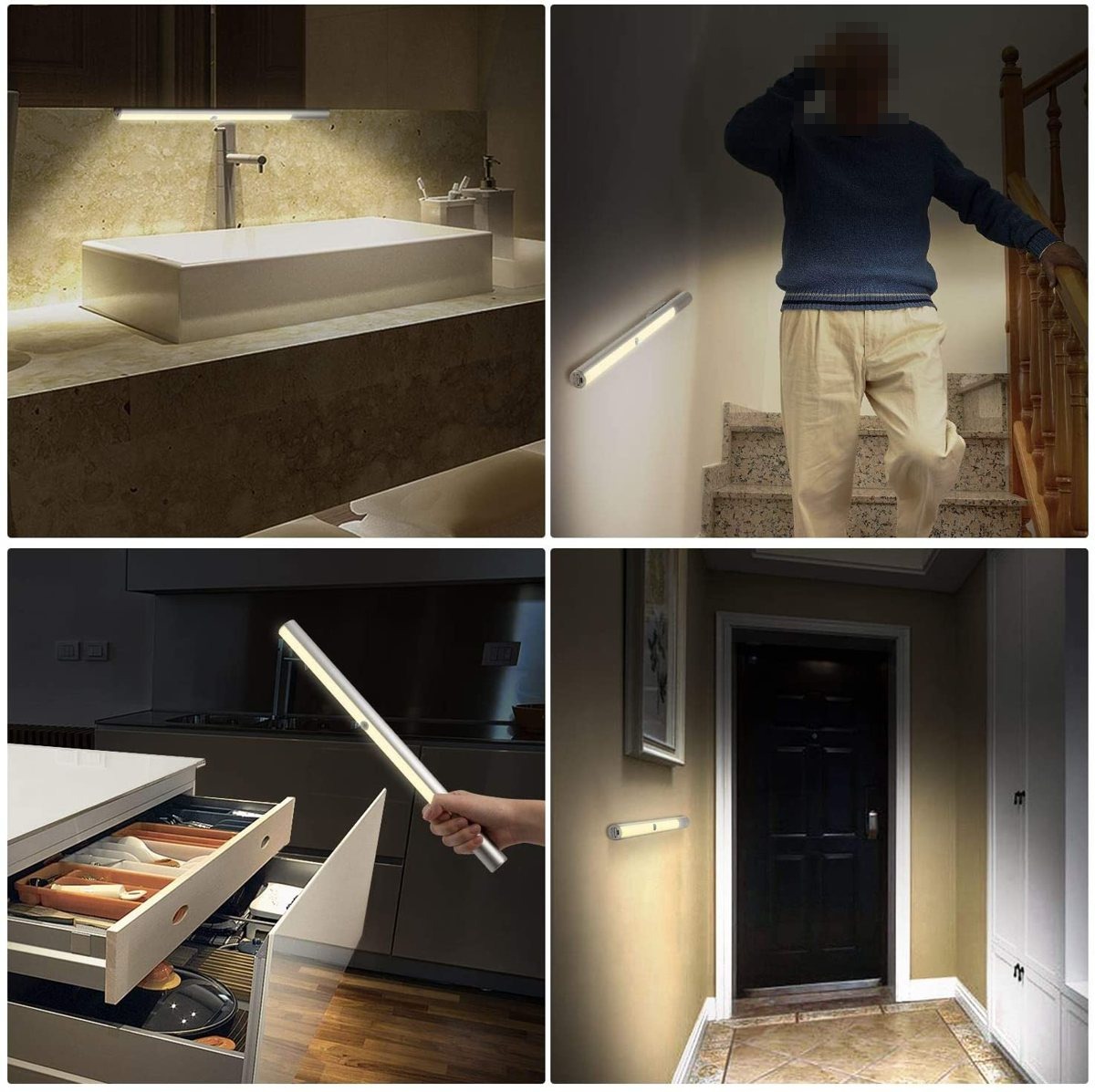

TDL-6108A — Big-Battery Rechargeable Sensor Light
A compact 380 mm unit with a quoted 4000 mAh battery, 170 lm and CRI above 80. How often it needs charging depends on brightness, triggers per day and hold time.
- 170 lm, CRI >80, white or warm white; 2.1 W (2026 factory spec)
- 4000 mAh rechargeable battery; ON / OFF / AUTO slide switch
- PIR detection >3 m / 120°; off 18 s (±2 s) after you leave
- Built-in daylight sensor; screw, 3M tape or magnet installation
Indicative wholesale: US$9.14 / unit · minimum 1,000 units
Ask about TDL-6108A

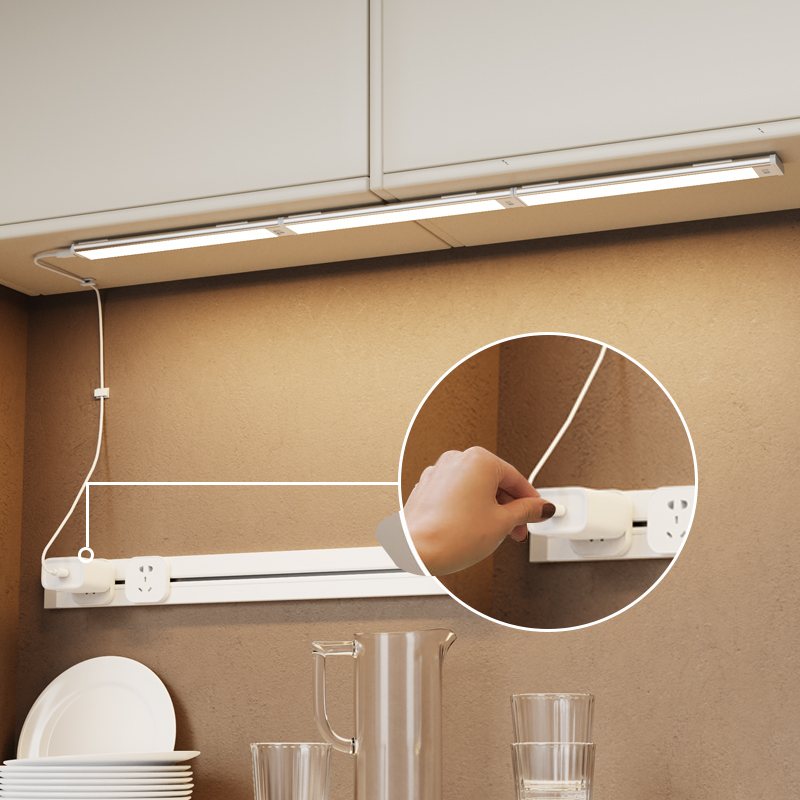

TDL-6110XRF-DJ — Spliceable Remote-Control Light
TDL-6110XRF-DJ model page: bar, remote and buyer summary →
Plan a group of light bars around the separate TDL-2041-DJ remote. The factory recommends six or fewer bars per remote for best results.
- Modular splicing: choose the bar count for your layout
- PIR placement guide: 3 m / 90°; the paired remote uses 2 × AAA, not included
- Strong-magnet mounting — no tools
- Synchronised switching across all connected bars; 2.4 GHz link, 15 m receive range
- One TDL-2041-DJ remote controls a whole run of bars — best within six bars per remote (2026 factory guidance)
- Per bar: 1.4 W, 120 lm, CRI 80, 1500 mAh, 250 × 40 × 9 mm
Quoted per order for the selected bar and remote configuration

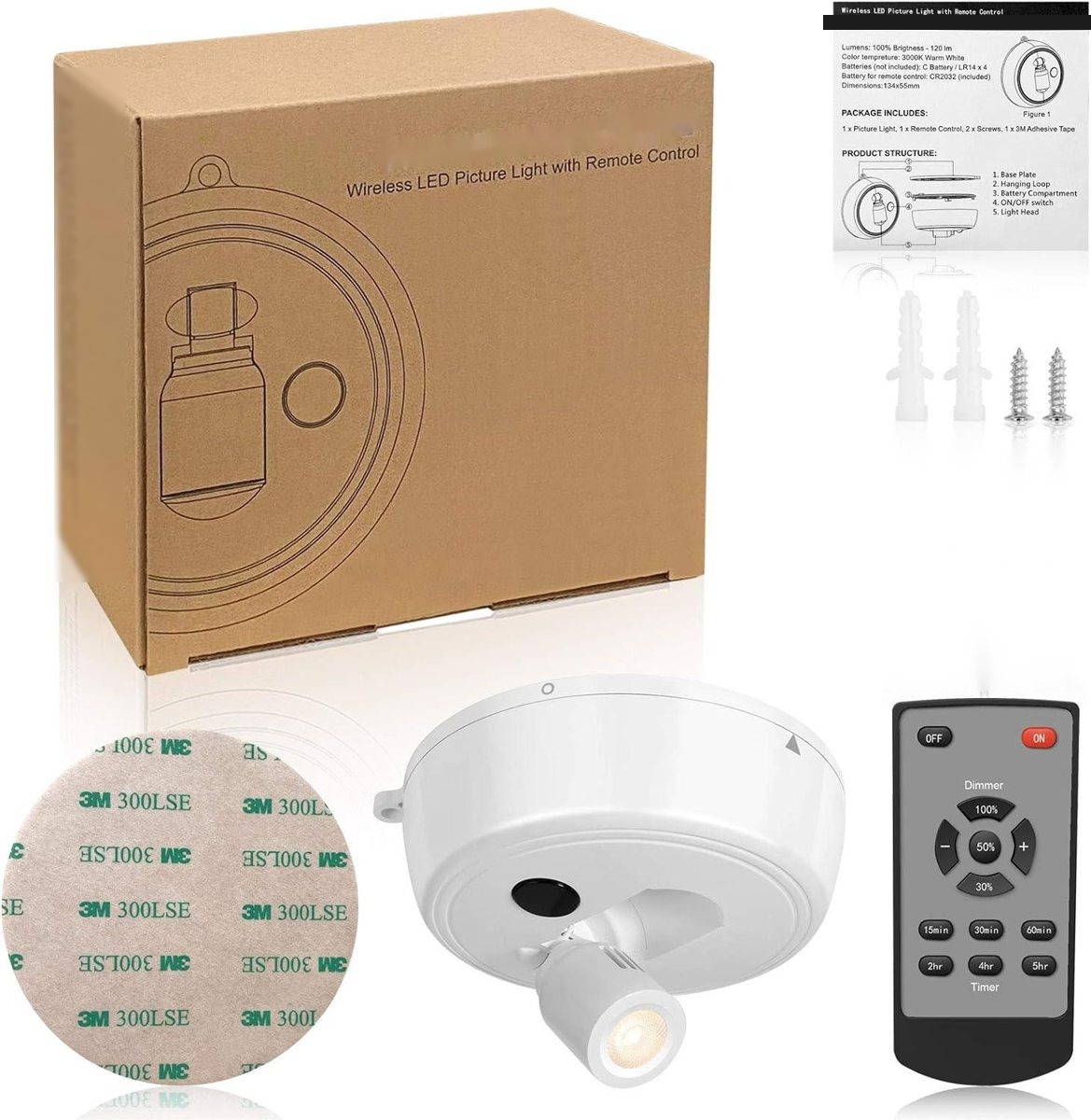

Ask about TDL-6110XRF-DJTDL-7134 — Wireless Picture & Display Light
Battery-powered spotlight for artwork and display walls — no wiring, installed in minutes, with a remote for dimming and auto-off timers.
- 120 lm, 3000 K warm white, CRI above 85 for true colours
- Remote with dimmer (30 / 50 / 100%) and timer (15 min – 5 h); brightness memory
- Multi-direction rotating head with even-distribution lens
- Runs on 4 × C (LR14) batteries; the instruction card says batteries are not included
Indicative wholesale: US$8.87 / unit · 100–500 units
Ask about TDL-7134

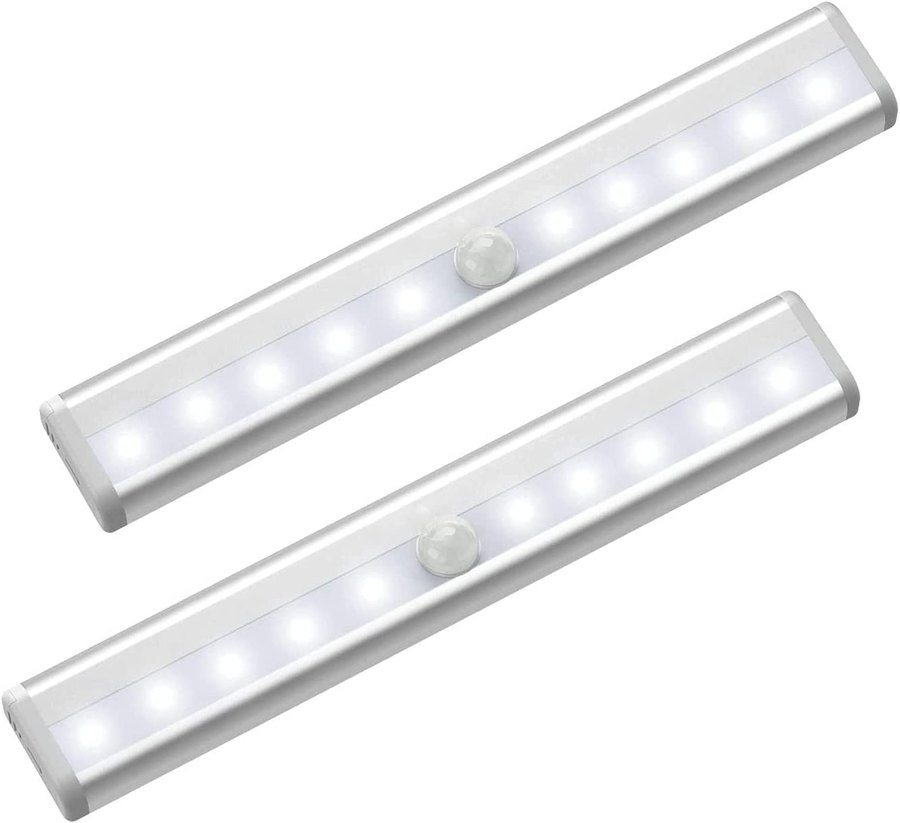

TDL-7120 — AAA-Battery Sensor Light Bar
The economical wireless option: powered by 4 × AAA batteries, attaching and detaching from a magnetic strip for quick battery changes. A built-in daylight sensor keeps it off when the room is already lit.
- PIR motion activation; daylight sensor extends battery life
- Magnetic-strip mounting with adhesive backing — peel and stick
- Related battery models: TDL-7125A puck lights and the TDL-7126B-A 14-inch panel (180 lm, 4 × AA)
Quantity-tiered pricing, quoted per order

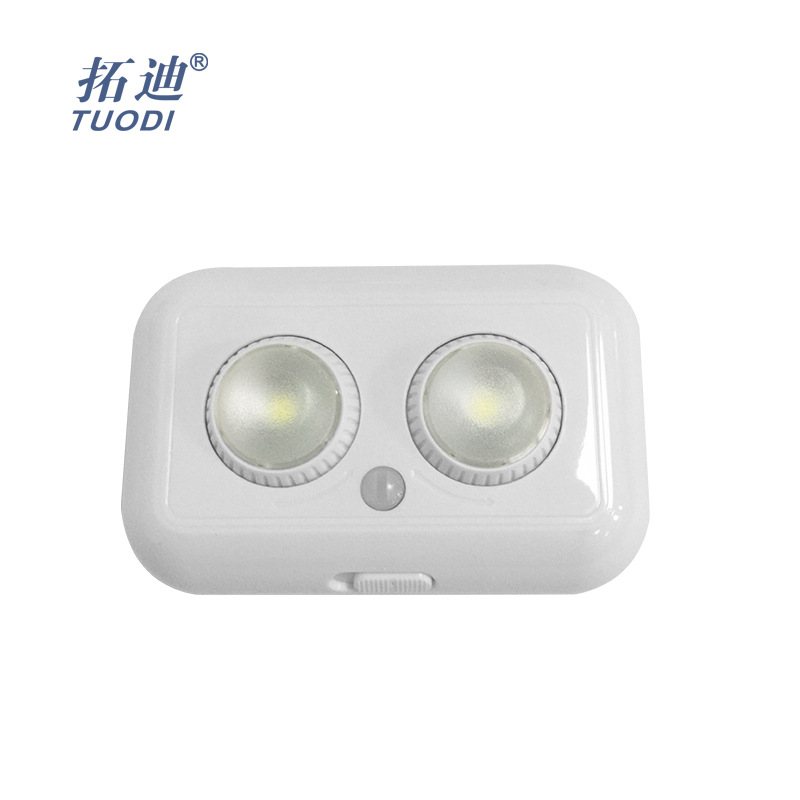

Ask about TDL-7120TDL-7127 — Twin-Head Safe & Strongbox Light
A battery PIR light the factory catalogues specifically as a safe light (保险柜灯): two independently aimed heads that light the interior of a safe, strongbox or deep wardrobe the moment it opens. White or silver housings.
| Sensing | PIR, >3 m, 140° cone, 15 s delay |
|---|---|
| Brightness steps | 50 lm (0.9 W) · 36 lm (0.6 W) · 24 lm (0.4 W) |
| Power | 4.5 V — 3 × AAA batteries |
| Light colour | White or warm white (selectable) |
| Size / weight | 117 × 75 × 33 mm · 84 g |
| Carton | 54 pcs · 12 kg gross · 490 × 265 × 410 mm |
Indicative wholesale: US$4.66 / white-shell unit; silver shell quoted per order · minimum 1,000 units
Ask about TDL-7127
Detachable Light Tubes & Ambient Bars
The bedroom-and-desk end of the family: a light tube that lifts off its base to become a hand-held lamp (TDL-8192), and an ambient bar for gaming, party, reading and sleep scenes (TDL-8193).

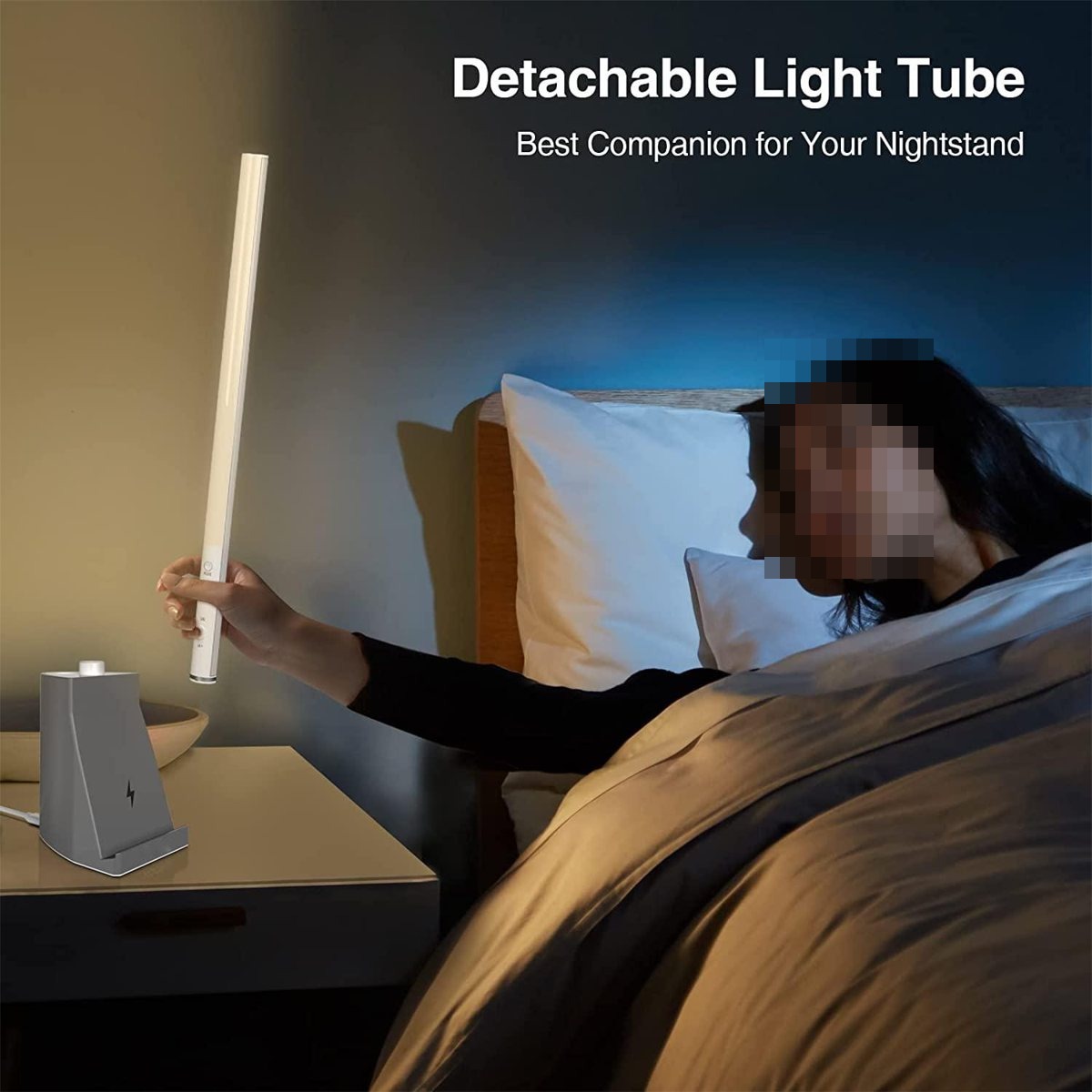

- TDL-8192 — detachable tube for a nightstand; base charging

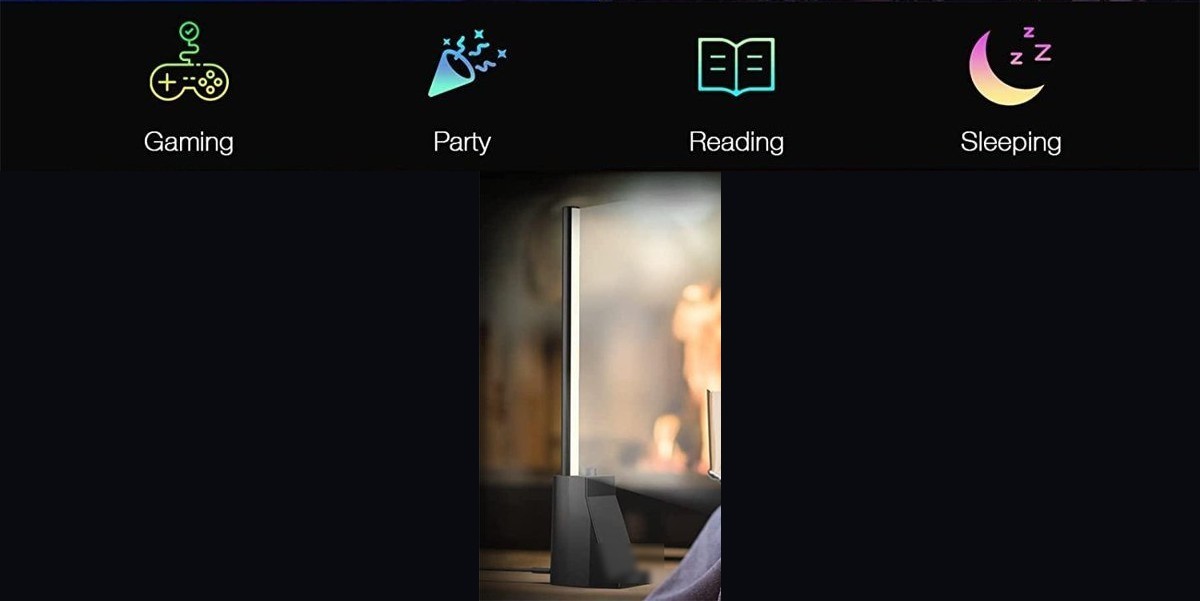

- TDL-8193 — scene modes for gaming, party, reading and sleeping; TV backlight or desk placement
- TDL-8192 is rechargeable; TDL-8193 5 V / 12 V powered builds are quoted separately
Indicative wholesale for TDL-8192 only: US$20.50 / unit · minimum 1,000 units. TDL-8193B-5V and TDL-8193B-12V are quoted separately.
Ask about the ambient series
TDL-7125A — Sensor Puck Lights
Round battery-powered puck lights for bathrooms, bedside tables, kitchens and closets — stick-anywhere formats that complete a whole-home wireless lighting range for distributors.
- PIR motion activation with daylight sensing
- Battery powered, tool-free adhesive or magnetic mounting
- Interlinked-sensing versions available: one sensor triggers a chain of wall and footlights via 2.4G wireless — ideal for corridors and staircases
More models in the family
TDL-6103 (CE and RoHS certified per its factory sheet, CRI 75), TDL-6107 night-light/desk-lamp hybrid with a four-position switch (OFF / ON / night-only auto / all-day auto), TDL-6106 and 6116 bars, hand-sweep 5V plug-in ultra-thin bars, split battery-pack versions, and low-voltage silicone LED strips (2–3 m, tri-colour). The ultra-thin magnetic models are the factory's best sellers. Ask for the full catalogue with current specifications on WhatsApp.
Questions buyers ask about the cabinet-light range
What lengths does the TDL-6110X PIR cabinet light bar come in, and how does battery size change across them?
The TDL-6110X comes in five factory lengths, with the battery sized to the length: 12 cm (300 mAh), 23 cm (1,500 mAh), 30 cm (2,200 mAh), 40 cm (3,000 mAh) and 60 cm (4,400 mAh). LED count scales with length too: the 30 cm bar runs 102 LEDs at 50-180 lm, the 40 cm runs 140 LEDs at 220 lm, and those two lengths are the private-label fit. Confirm your length, LED count and output on the quotation and sample.
Can I order a cabinet light bar in a length that isn't on your standard size chart, like 50 cm?
Yes. Off-chart lengths are made as a custom build: the factory cuts an existing aluminium profile on its own equipment, a tooling job with its own minimum order. The 50 cm bar, for example, comes from the 60 cm profile at 250 or 300 lm with a 3,000 or 4,500 mAh pack, on planning figures of 5-7 days for the sample and 25-30 days for production. Documents for a listed length do not automatically cover a custom build. Before ordering for the EU, ask us to check how the manufacturer's conformity assessment, technical documentation and EU declaration of conformity cover the exact build; confirm any RoHS or FCC evidence separately.
How long does the TDL-6110X stay lit after it stops sensing motion?
The quoted 30 cm and 40 cm builds use an 18-second hold: the bar stays lit for 18 seconds after motion stops, then switches off. Hold time drives both perceived convenience and battery drain, so test the PIR field and the hold time together on your sample. Ask for the hold figure in writing on the exact length and build you order, since it is not listed for every length in the family.
How strong is the magnetic mount on the TDL-6110X — will it stay on my cabinet without extra hardware?
On the 30 and 40 cm bars — the private-label fit — the bar mounts magnetically onto two adhesive steel plates measuring 3.5 x 4 cm; the quoted magnets are single-sided N40 grade with a recommended maximum load of 300 g. The 300 g figure does not say per plate or per bar, or pull-off versus shear, so test both on your own cabinet finish and door before you commit.
What's the difference between the PIR TDL-6110X and the radar TDL-6110XWB, and when should I choose radar?
The PIR TDL-6110X senses moving body heat over a 120-degree angle, rated beyond 3 m on the 30 and 40 cm models. The radar TDL-6110XWB uses microwave sensing instead: under 3 m, a wider 150-degree beam, and generally less affected by room temperature than PIR. It may sense through some thin panels, so a closed wardrobe door may not stop detection. Prove placement and through-panel behaviour on your own cabinet rather than assuming the door will either block or pass the signal.
Notes
Quotation review: 13 September 2026. Indicative USD product prices depend on the selected model, configuration and quantity. Prices include delivery within China; international freight and tax are quoted separately. Custom packaging, payment terms and current price validity are confirmed on quotation.
Points to settle on the sample: for TDL-6110X, length, mounting, colour setting and the intended sensing behaviour; for TDL-6110XWB radar, panel material, sensor position and through-panel behaviour in the actual cabinet; for TDL-6110X-IR, hand-wave and touch behaviour in the intended position; for TDL-6110XRF-DJ, bar count, layout, pairing and recovery after power loss.
Do not infer a fixed wired installation from the appearance of a light bar; define the power architecture in the RFQ and test the proposed build. For TDL-7148, confirm the exact supply, length, mounting and control on your quotation and sample.
TDL-6110X 30 and 40 cm: the 30 and 40 cm rows carry the newer model-specific sheet; the others use the 2026 family sheet. Name the exact length on your quotation and sample, confirm stepped or stepless dimming, and test the supplied mounting parts and sensing field in your intended position. Test pull-off and shear of the magnetic mount on your own cabinet finish before you commit. Check charging time, runtime and CRI on your sample if they matter to you. CE, RoHS and FCC coverage for these exact lengths is confirmed only when we send you the issued document.
Specify the battery for your private-label order: agree cell chemistry, rated capacity, pack dimensions, protection, charging input, use-while-charging and the UN 38.3/MSDS mapping on the quotation and sample. The capacities above are the factory's figures; if capacity is commercially critical, agree a charge/discharge check and its pass limit.
TDL-6110XWB: for the 58 cm build, use 225 lm when planning; an alternative 255 lm figure also appears and is unconfirmed, so agree the output for your selected sample before ordering. The artwork labels the cool end of the colour-temperature range differently from the quotation sheet; confirm it with us if it matters.
TDL-6110XRF-DJ: confirm joining, pairing and control behaviour and the sensing field for the selected layout. The installation illustration is a guide; confirm the quoted power and connection arrangement and use an approved drawing. Agree brightness and daily use, then measure runtime on the selected sample.
TDL-7134: the instruction card says batteries are not included, so budget for them; battery inclusion is confirmed in writing with your quotation. The factory-quoted battery life of around 160 days has no defined use pattern behind it, so treat it as indicative.
TDL-6111: confirm the clearance needed to remove the card. Days per charge depend on use; agree the runtime test conditions on your quotation, and confirm whether unit and carton weights are net or gross.
TDL-6111, 35 cm configured span: Factory specification: 25 cm light section plus 10 cm battery card. Please confirm the selected build on the quotation.
- Battery capacity
- To be confirmed on your quotation.
- LED count
- To be confirmed on your quotation.
- Hold time
- To be confirmed on your quotation.
- Sensing pack
- To be confirmed on your quotation.
- Charging connector
- To be confirmed on your quotation.
- Colour temperature
- To be confirmed on your quotation.
- Battery cell
- To be confirmed on your quotation.
- Factory build reference
- To be confirmed on your quotation.
- Runtime under agreed use conditions
- To be confirmed on your quotation.
- Separate replacement-card supply
- To be confirmed on your quotation.
- Please confirm battery capacity on your quotation.
- Please confirm led count on your quotation.
- Please confirm hold time on your quotation.
- Please confirm sensing pack on your quotation.
- Please confirm charging connector on your quotation.
- Please confirm colour temperature on your quotation.
- Please confirm battery cell on your quotation.
- Please confirm factory build reference on your quotation.
- Please state runtime under agreed use conditions.
- Confirm replacement-card availability, compatibility and order terms for the selected configuration.
- Confirm on the quotation whether unit and carton weights are net or gross.
TDL-6111, 54 cm configured span: Factory specification: 40 cm light section plus 14 cm battery card. Please confirm the selected build on the quotation.
- Sensing pack
- To be confirmed on your quotation.
- Charging connector
- To be confirmed on your quotation.
- Colour temperature
- To be confirmed on your quotation.
- Battery cell
- To be confirmed on your quotation.
- Factory build reference
- To be confirmed on your quotation.
- Runtime under agreed use conditions
- To be confirmed on your quotation.
- Separate replacement-card supply
- To be confirmed on your quotation.
- Please confirm sensing pack on your quotation.
- Please confirm charging connector on your quotation.
- Please confirm colour temperature on your quotation.
- Please confirm battery cell on your quotation.
- Please confirm factory build reference on your quotation.
- Please state runtime under agreed use conditions.
- Confirm replacement-card availability, compatibility and order terms for the selected configuration.
- Confirm on the quotation whether unit and carton weights are net or gross.
