Where this model fits

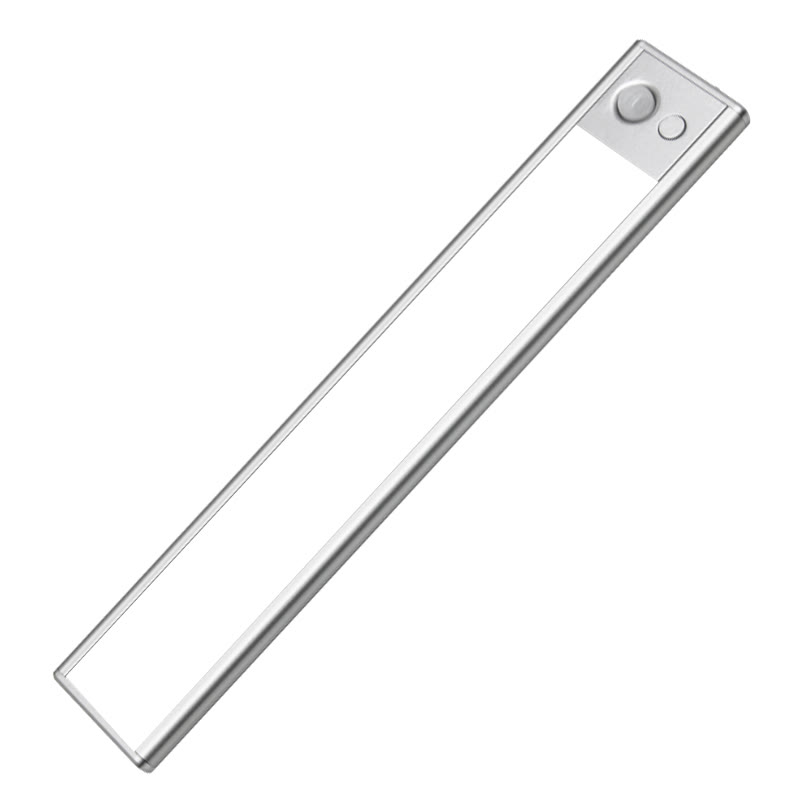

Choose TDL-6110X when the project needs a rechargeable PIR bar with length-specific configurations. Start with the 30 cm or 40 cm build for a private-label sample.
Length-specific specifications
The 30 cm configuration is factory-stated as 300 × 38 × 9 mm, 2200 mAh, 0.6–3 W ±10%, 50–180 lm ±10%, 102 LEDs and an 18-second hold. The 40 cm configuration is factory-stated as 403 × 38 × 9 mm, 3000 mAh, 3 W, 220 lm, 140 LEDs and an 18-second hold.
For those two current configurations, the factory sheet states PIR detection above 3 m at 120°, USB-C charging, 2800 / 4000 / 6000 K selection, silver aluminium, ON, night-only AUTO1 and all-day AUTO2 modes, and two adhesive iron plates plus a USB-C cable. Treat charge time, runtime and CRI as sample checks when they matter to the buying decision.
| Configuration | Details |
|---|---|
| 30 cm | 300 × 38 × 9 mm; 2200 mAh; 0.6–3 W ±10%; 50–180 lm ±10%; 102 LEDs; 18 s hold |
| 40 cm | 403 × 38 × 9 mm; 3000 mAh; 3 W; 220 lm; 140 LEDs; 18 s hold |
| Other factory-sheet configurations | 23 cm: 1.4 W / 110 lm / 74 LEDs / 1500 mAh; 60 cm: 3.2 W / 280 lm / 216 LEDs / 4400 mAh |
Fit, mounting and charging
Use the PIR option for normal cabinet or wardrobe movement, then place a sample where the intended user enters the sensing field. The bar is intended for magnetic mounting with adhesive steel plates; actual surface finish, clearance and charging access should be tested in the furniture rather than inferred from a product render.
The platform includes several lengths, and their figures are not interchangeable. Use the 30 cm and 40 cm specifications above for those selected builds. Name the full model and length in the enquiry, sample record and proforma invoice.
Configuration checks before order
Confirm whether the selected build uses fixed brightness levels or stepless long-press dimming, and whether its indicator shows charging only or remaining battery charge. Confirm hold time and colour-temperature setting on the sample for the selected length.
Request exact-model CE, RoHS and FCC documents if needed for your market. Put battery chemistry, rated capacity, protection, charging input, UN38.3/MSDS mapping, warranty remedy and the selected colour setting on the quotation and sample record.
Sample and quotation checks
- Confirm selected length and output
- Test PIR field and the selected hold time; 30 cm and 40 cm builds are stated as 18 seconds
- Confirm stepped or stepless dimming and charge-indicator meaning
- Match battery and compliance documents to the quoted build
