Inside the TUODI sensor-lighting factory in Zhaoqing, China

Around one million units a year, by the factory's own figures, from TUODI's production base in Sihui, Zhaoqing, Guangdong, on equipment the factory lists as 2 SMT placement machines, an 8-temperature-zone reflow oven, CNC machining, laser marking, 2 integrating spheres, oscilloscopes and 4 ageing racks.

See it working before you order: electronics placement and reflow, product assembly, laser marking, photometric and battery checks, ageing racks, connected-unit benches, finished goods and packing, on a live video call or an in-person visit.

Book a live factory walk-through Visit the factory

Production and test equipment

Integrating sphere photometric measurement equipment — Integrating spheres (2 units) — photometric measurement of flux and colour

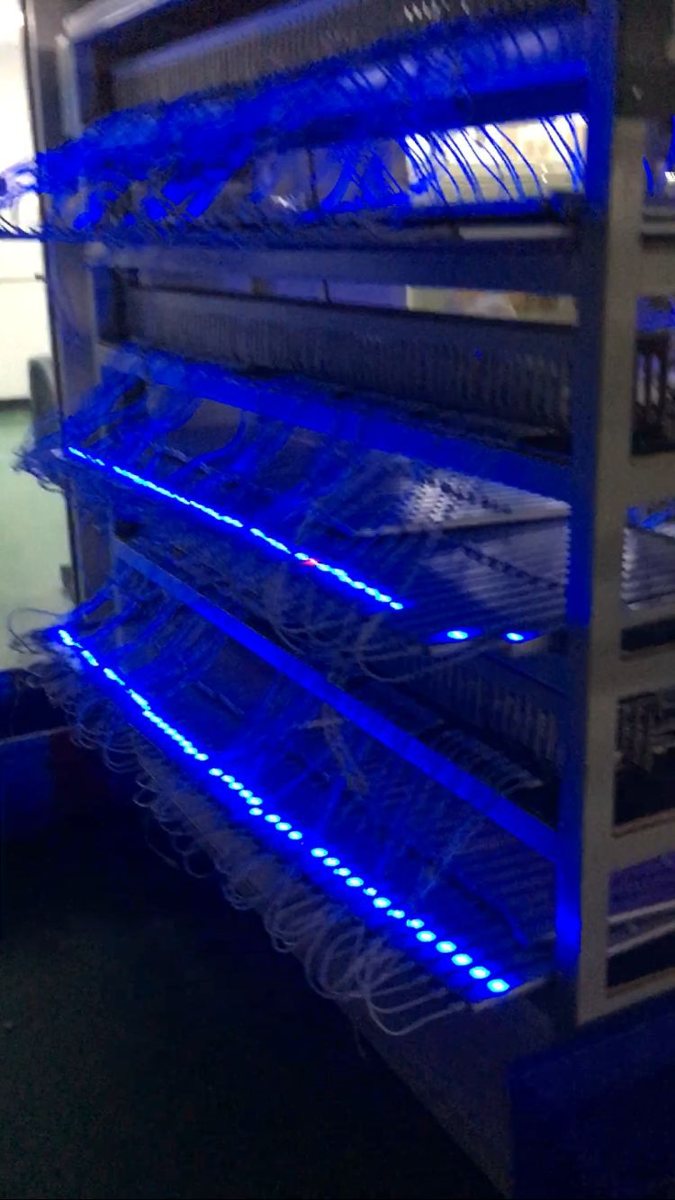

LED ageing rack running blue light bars — Ageing racks (4 units) — extended burn-in of finished lights

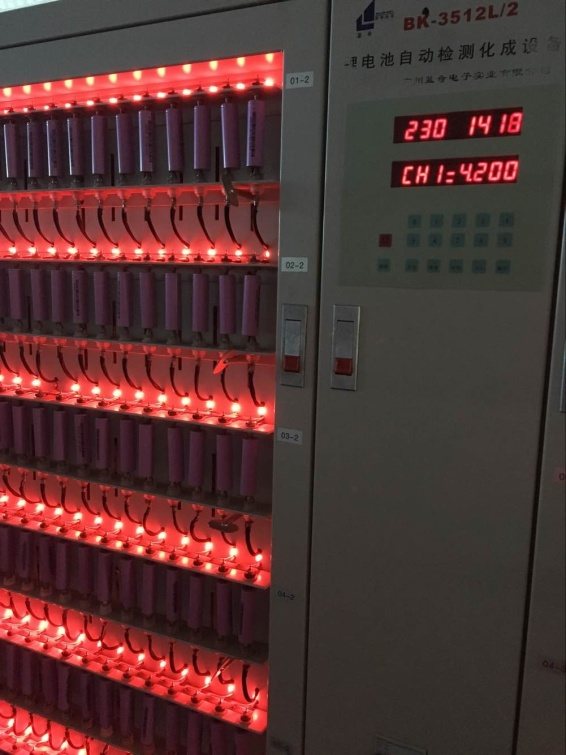

Battery grading and testing cabinet — Battery grading cabinet — capacity testing of rechargeable cells

The production floor on video

Production and testing at Guangdong Tuodi Electronics in Zhaoqing, filmed on the current factory floor.

Current Zhaoqing production floor — 44 seconds of production and testing at Guangdong Tuodi Electronics.

Photometric lab — an 8-second pan across the integrating sphere and test cabinet at the Zhaoqing factory.

Supply-Powered Cabinet Light Bars (TDL-7148) on an ageing run — 60 cm supply-powered bars left running on a bench, hand-swept to switch and stepped through three colour temperatures.

Three factory processes on video

A functional fixture check, laser marking and a connected switch test bench in use.

Illuminated fixture check — a gloved operator uses the factory's functional-check station.

Laser marking — a TUODI mark is applied to an aluminium light housing.

Connected switch test bench — an operator works with connected switch units at the bench.

From electronics to finished assembly

TUODI assembly line with conveyor — Assembly line

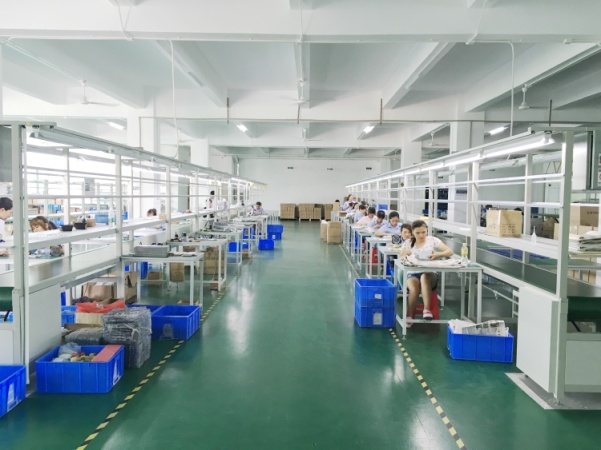

Assembly stations at the TUODI factory — Assembly stations

SMT pick-and-place machine at the TUODI factory — SMT room — surface-mount placement

How a production order moves through quality control

A five-stage path for sensor-switch and rechargeable-light builds. The inspection plan for your order names the tests and pass limits at each stage.

Incoming material

Check the received components and materials against the order specification.

SMT & PCBA

Place and inspect electronics before soldering and subassembly move forward.

Finished function

Check switching, sensing distance/behaviour, light response and controls for the configured product.

Charge & ageing

For rechargeable-light orders, define the charge, illumination and ageing stage required for that build.

Pack & lot check

Confirm appearance, accessories, labels and packaging, then apply the agreed shipment-lot sample plan.

Factory-supplied illuminated fixture station during a hands-on light check — **Function check:** an illuminated unit is checked at a fixture station.

Private label: a TUODI mark is laser-applied to an aluminium light housing.

Connected light products illuminated together on a factory test bench — **Batch check:** connected products are illuminated together on a factory bench.

Put the tests on the order: sample size, duration, pass limits, record format and failed-lot remedy. Compare supplier proposals with the picture-led quality comparison and build your checks with the sample acceptance planner.

See 15 more factory-floor and engineering photographs

Unretouched factory photographs of engineering workstations, assembly, work-in-process, connected-unit checks, finished bars and SMT equipment. They show the stations at work.

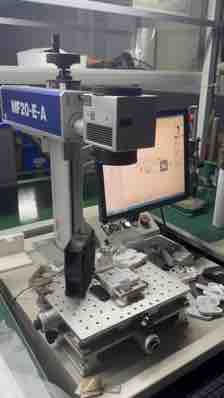

Factory workbench fixture station — Workbench fixture station.

Factory assembly area with workstations and blue work-in-process bins — Assembly area and work-in-process bins.

Hands assembling round sensor modules at a factory workstation — Manual assembly at a workstation.

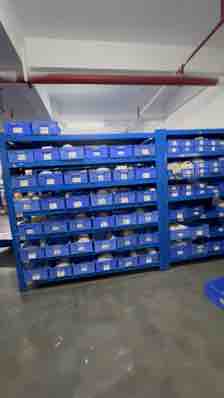

Blue parts bins beside a factory work area — Parts and work-in-process storage.

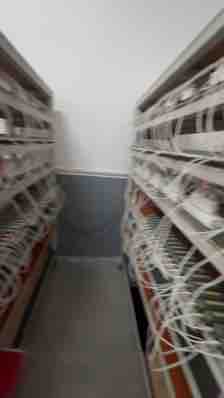

Connected units and wiring on factory racks — Connected-unit racks.

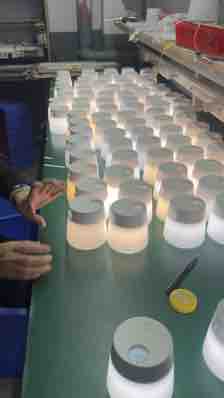

Multiple round light units illuminated together on a factory bench — Illuminated multi-unit bench.

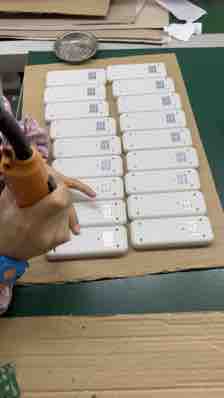

Handheld check over finished rectangular light units — Finished-unit spot check.

Rows of connected round light units on a factory bench — Connected-unit bench.

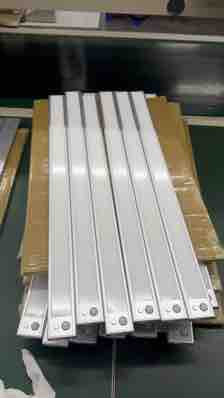

Finished aluminium light bars grouped at a factory workstation — Finished aluminium light bars.

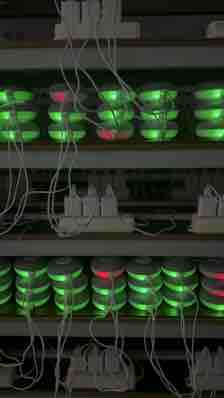

Multi-tier factory rack with connected units showing green indicators — Operating units on an indicator rack.

SMT placement equipment and component feeders on the factory floor — SMT placement equipment and feeders.

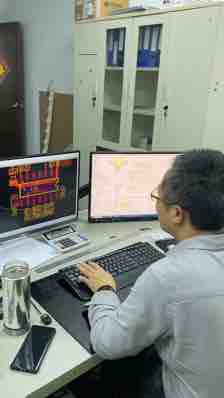

TUODI employee working at a dual-monitor electronics engineering workstation — Electronics engineering workstation.

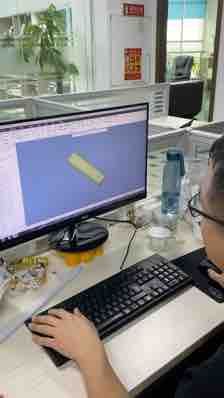

TUODI employee working with a three-dimensional product model on screen — Three-dimensional product-design workstation.

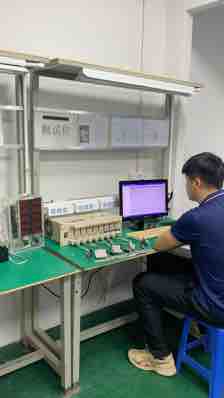

TUODI employee working at a connected switch test bench — Connected switch test workstation.

TUODI employee checking connected light units on a rack — Hands-on connected-unit check.

Offices and meeting rooms

Zhaoqing reception, certificate wall and meeting rooms — a 34-second walk from the entrance of Guangdong Tuodi Electronics to the rooms where buyer visits start.

Historical reception of Shenzhen Tuodi Electronics with company sign — Historical Shenzhen company reception — not the current visit address

Reception of Guangdong Tuodi Electronics at the Zhaoqing factory — Current factory reception — Guangdong Tuodi, Zhaoqing

Office area at the TUODI factory — Office area

Meeting room at the TUODI factory — Meeting room — where buyer visits start

At international exhibitions

TUODI has exhibited its sensor-lighting range at international lighting fairs since 2017, including events in Russia and Turkey.

TUODI stand E-110 at the IstanbulLight international lighting fair in Turkey — Stand E-110, IstanbulLight (Turkey) — faces pixelated for privacy

Visitors viewing TUODI sensor lighting on the exhibition stand — Sensor-lighting range on the stand

TDL-6110 series sensor lights demonstrated on the TUODI exhibition stand — Demonstrating the TDL-6110 series

Live video call, visit or third-party inspection

Live walk-through or visit

See the stations that matter for your product on a live video call or in person.

Model documents

Match the exact model and destination to the certificates and test reports.

Sample checks

Turn the application into pass/fail tests with the sample acceptance planner.

Production-order inspection

Third-party inspection (your agency or ours) is welcome on production orders. Arrange it with the international sales team.

Visit the production base. Room 502, 5th Floor, Building B2, 41 Dawang Avenue, Dawang Hi-tech Zone, Zhaoqing Wanyang Zhongchuangcheng, Sihui City, Zhaoqing City, Guangdong, China 526200. Search this address in Google Maps → Showrooms at both sites: Shenzhen for a sales or product meeting, Zhaoqing for the showroom and production inspection. Arrange a Zhaoqing tour →

Notes

The equipment list and the figure of around one million units of annual output are supplied by the factory.

These options help you inspect a proposed order. They do not replace the qualification, documents or audit requirements set by your customer or destination market.

TDL-7148 ageing-run video: no duration, pass limit or result is shown; agree the ageing stage and its limit for your own build.

The photographs show the stations at work; the inspection coverage for your order is confirmed on the order.

The Google Maps link is an address search, not a gate pin, so confirm the visitor entrance and pickup plan before booking travel.

The older warehouse footage below is from the company's earlier premises, so it is not what you would see on a visit.
