Best for

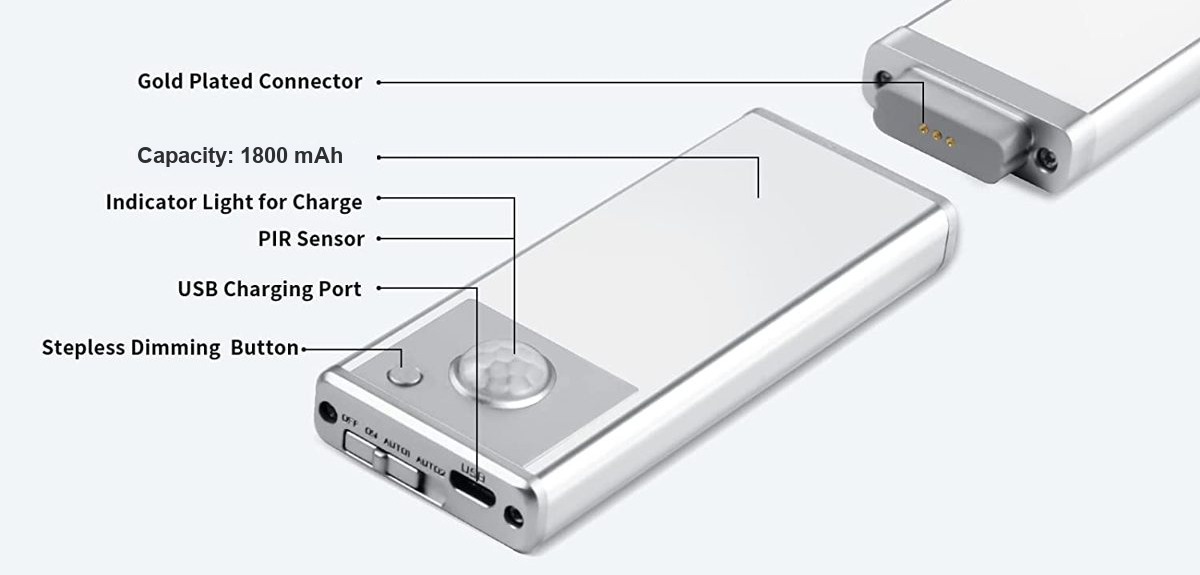

Wardrobe rails, cabinets and rental or serviced furniture. Each configured span combines a light section with a detachable battery card; it is not one continuous housing.
Configured spans and specifications
| Field | 35 cm configured span | 54 cm configured span |
|---|---|---|
| Configured span | 35 cm | 54 cm |
| Light section length | 25 cm | 40 cm |
| Battery card length | 10 cm | 14 cm |
| Light section dimensions | 250 × 38 × 9 mm | 400 × 38 × 9 mm |
| Power | 1.3 W | 2 W |
| Power tolerance | ±10% | ±10% |
| Light output | 136 lm | 208 lm |
| Battery capacity | — | 3000 mAh |
| LED count | — | 146 LEDs |
| Hold time | — | 15 s |
| Battery design | Detachable battery card | Detachable battery card |
| Mounting | Magnetic mounting with adhesive steel plates | Magnetic mounting with adhesive steel plates |
| Dimming | Long-press dimming | Long-press dimming |
| Weight per set | 210 g | 300 g |
| Neutral box dimensions | 265 × 50 × 40 mm | 415 × 50 × 40 mm |
| Sets per carton | 60 sets | 30 sets |
| Carton dimensions | 425 × 270 × 300 mm | 425 × 270 × 300 mm |
| Carton weight | 13 kg | 10 kg |
Factory specifications. Values not listed are stated on your quotation. A dash marks a value stated on your quotation.
35 cm configured span. Configuration reference: tdl-6111-35cm@3.
54 cm configured span. Configuration reference: tdl-6111-54cm@3.
EMC lab attestation DLE-260814001C
EMC Directive 2014/30/EU; issued 17 August 2026.
Named subjects: TDL-6110X, 6110X-IR, 6110XRF-DJ, 6110XWB, 6111, 6112, 6113, 6118, 6108.
Family named; selected build still needs matching.
This EMC document is listed for the named model families; ask for the full document to check the length and battery build in your quotation.
Coverage of either selected TDL-6111 configuration still needs matching to the full document.
Do not use this EMC document to confirm battery capacity, runtime, water resistance, electrical safety or battery transport acceptance.
Request the full document and underlying test reports.
Ask whether the document covers the exact build in your quotation.
Request only: Full document and underlying test reports.
Charging and service access
The battery card charges while the bar stays on the wardrobe rail or cabinet. Replacement battery cards can be ordered separately. Ask for a written supply-continuity period if long-term maintenance matters.
Certificates and test reports
EMC lab attestation DLE-260814001C names the TDL-6111 family.
Related cabinet lights
Quote TDL-6111 on WhatsApp Build an enquiry for TDL-6111 Compare the cabinet-light family What moves the price Download buyer summary
Notes
TDL-6111, 35 cm configured span: Factory specification: 25 cm light section plus 10 cm battery card. Please confirm the selected build on the quotation.
- Battery capacity
- To be confirmed on your quotation.
- LED count
- To be confirmed on your quotation.
- Hold time
- To be confirmed on your quotation.
- Sensing pack
- To be confirmed on your quotation.
- Charging connector
- To be confirmed on your quotation.
- Colour temperature
- To be confirmed on your quotation.
- Battery cell
- To be confirmed on your quotation.
- Factory build reference
- To be confirmed on your quotation.
- Runtime under agreed use conditions
- To be confirmed on your quotation.
- Separate replacement-card supply
- To be confirmed on your quotation.
- Please confirm battery capacity on your quotation.
- Please confirm led count on your quotation.
- Please confirm hold time on your quotation.
- Please confirm sensing pack on your quotation.
- Please confirm charging connector on your quotation.
- Please confirm colour temperature on your quotation.
- Please confirm battery cell on your quotation.
- Please confirm factory build reference on your quotation.
- Please state runtime under agreed use conditions.
- Confirm replacement-card availability, compatibility and order terms for the selected configuration.
- Confirm on the quotation whether unit and carton weights are net or gross.
TDL-6111, 54 cm configured span: Factory specification: 40 cm light section plus 14 cm battery card. Please confirm the selected build on the quotation.
- Sensing pack
- To be confirmed on your quotation.
- Charging connector
- To be confirmed on your quotation.
- Colour temperature
- To be confirmed on your quotation.
- Battery cell
- To be confirmed on your quotation.
- Factory build reference
- To be confirmed on your quotation.
- Runtime under agreed use conditions
- To be confirmed on your quotation.
- Separate replacement-card supply
- To be confirmed on your quotation.
- Please confirm sensing pack on your quotation.
- Please confirm charging connector on your quotation.
- Please confirm colour temperature on your quotation.
- Please confirm battery cell on your quotation.
- Please confirm factory build reference on your quotation.
- Please state runtime under agreed use conditions.
- Confirm replacement-card availability, compatibility and order terms for the selected configuration.
- Confirm on the quotation whether unit and carton weights are net or gross.
Sample acceptance checklist
- Confirm the selected configuration on your quotation.
- The documents above name the model family. Match the full document to the selected build and destination before ordering.
- Confirm replacement-card compatibility and availability for the selected configuration.
- Confirm the installed location, card removal clearance, chosen sensing pack and connector during sample approval.
- Select a configured span and the sensing pack you need. Confirm the selected connector, colour temperature and battery capacity before approving the sample.
- Confirm selected output, battery cell, transport documents, unit and carton-weight basis and exact-model documents on the PI and sample. Confirm replacement-card availability, compatibility and order terms for the selected configuration.
- Check configured span and card-removal clearance
- Confirm PIR or hand-sweep pack
- Confirm connector, CCT and battery-cell mapping
- Confirm the compatible replacement-card part number and order terms
