Best for
Furniture layouts where one remote should switch a planned group of bars together. Plan groups of six or fewer bars per remote under current factory guidance.
25 cm bar and remote

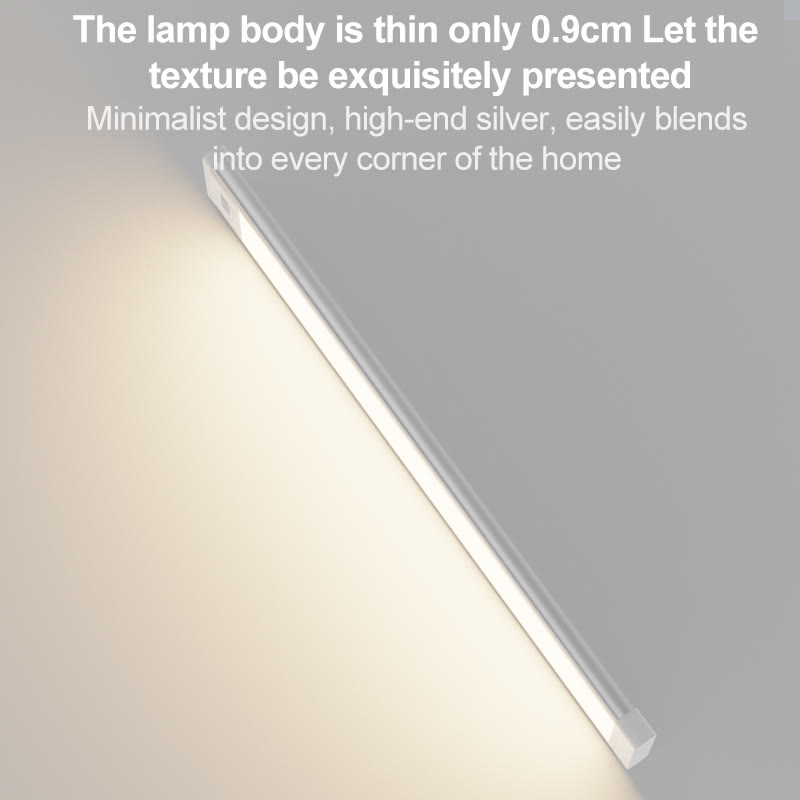

The factory quotation identifies a 25 cm TDL-6110XRF-DJ configuration with 1.4 W, 120 lm, 1500 mAh, 30-second hold, −10 to 45 °C and a 250 × 40 × 9 mm bar. Each set ships with one light and one remote. Use 3 m / 90° as a starting point for PIR placement.
The TDL-2041-DJ remote uses two AAA batteries, which are not included. Its quoted remote range is 15 m and its sensing specification is 3 m. One remote is intended to drive multiple bars, with six or fewer as the planning maximum.
| Configuration | Details |
|---|---|
| Per bar | 250 × 40 × 9 mm; 1.4 W; 120 lm; 1500 mAh; 30 s hold |
| PIR placement guide | 3 m / 90° as the starting point for placement |
| Remote | TDL-2041-DJ; 2 × AAA not included; 15 m remote range |
| Included | One light and one remote per set |
Layout and mounting
Use this configuration when you want coordinated control across a planned group of bars. Include the bar count, layout, power arrangement and intended pairing/recovery behaviour in your enquiry. The stated six-bar guidance is a practical factory recommendation, not an unlimited-chain promise.
Certificates and test reports
EMC lab attestation DLE-260814001C and RoHS test report DLR-260814022R name the TDL-6110XRF-DJ family.
Related cabinet lights
Quote TDL-6110XRF-DJ on WhatsApp Build an enquiry for TDL-6110XRF-DJ Compare the cabinet-light family What moves the price Download buyer summary
Notes
The installation illustration is a guide: confirm the quoted power and connection arrangement and use an approved drawing for the selected build.
Sample acceptance checklist
- Confirm the selected configuration on your quotation.
- The documents above name the model family. Match the full document to the selected build and destination before ordering.
- Confirm the sensing field and the group arrangement on the selected sample.
- Confirm magnetic joining, mounting, connections and compatibility on the selected build and sample. Check the exact arrangement before combining bars or remotes from different configurations.
- Measure runtime at the agreed brightness and daily-use pattern on the selected sample. Do not use a generic runtime estimate for this configuration.
- Confirm the selected group size, remote pairing, battery documents, remote-battery inclusion and final sensing behaviour on the quotation and sample. Include the number and layout of bars in the enquiry.
- Test 3 m / 90° sensing in the actual layout
- Test remote control across the selected number of bars
- Confirm remote battery inclusion and pairing behaviour
- Agree brightness and daily use, then measure runtime on the selected sample
